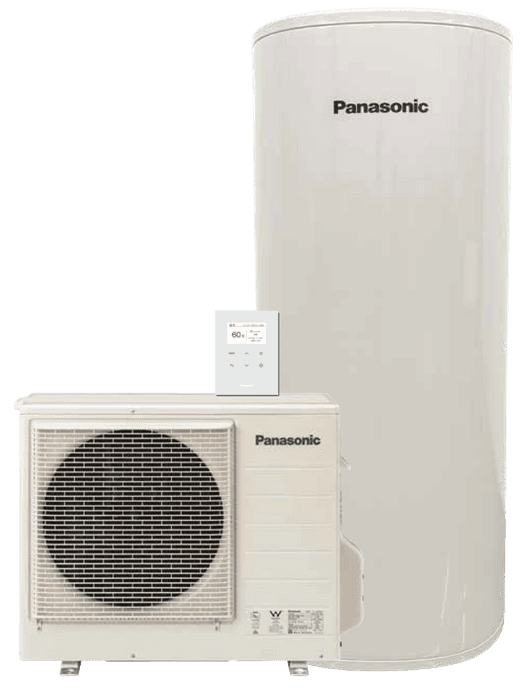

Panasonic CO2
Hot Water Heat Pump
A more efficient hot water solution.
- Quietest heat pump on the market
- Choose 4kW or 6kW heating output
- 10 year parts and labour warranty
Home of Australia's Most Advanced and Efficient Hot Water Systems
Everything you need for uninterrupted hot water bliss
Panasonic has been manufacturing CO2 hot water heat pumps for over 20 years, with more than 2 million units supplied in Japan alone. With heat pumps made in Japan and a range of Australian-made stainless steel and vitreous enamel tanks, you can rely on a superior, tried and tested product.
- CO2 refrigerant - the ultimate for cold-climate performance and C.O.P.
- Top-down heating design for the fastest recovery rate

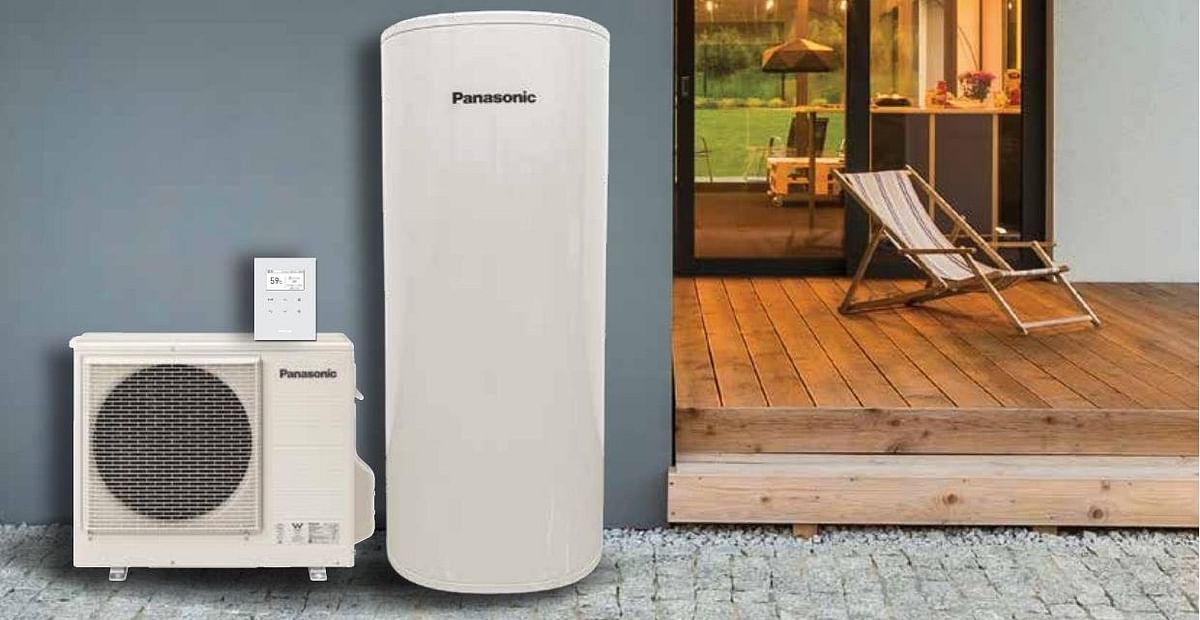

- Split system design for more flexible installation options
- WiFi-enabled controller for smart phone control
- Integrates seamlessly with your PV solar system
- Qualifies for state and federal rebates
Heat pump manufacturing experience
Heat pumps sold in Japan alone
Number one heat pump company in Japan
Japanese manufacturing quality
A natural refrigerant that outperforms
Most heat pumps use synthetic refrigerants. Panasonic uses R744 (CO2) - a natural refrigerant that is better for the planet and better in the cold.
Extremely Low Environmental Impact
CO2 has a very low Global Warming Potential, making it one of the most environmentally friendly heating options available.
High Energy Efficiency
A high C.O.P. significantly reduces energy consumption and running costs, and integrates with your solar PV for even greater savings.
Reliable Cold-Climate Performance
Engineered to deliver hot water at 63 degrees C even in the coldest conditions, where conventional heat pumps struggle.
Heat from the air, hot water with less cost
- Lowest global warming potential and high energy efficiency
- CO2 refrigerant is natural, efficient and non-flammable
- Consistent hot water even in alpine regions
- Sustainable and future-proof technology

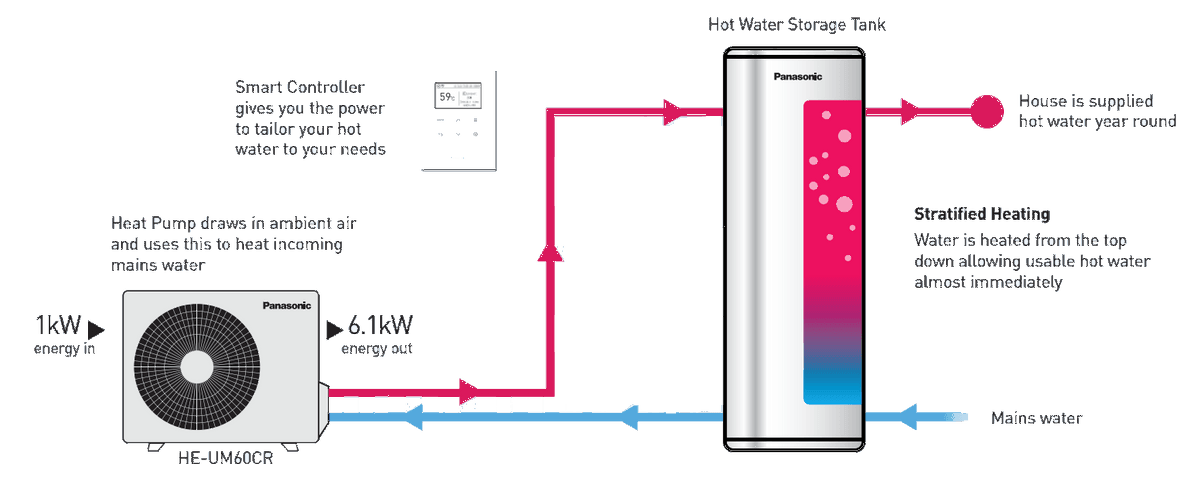

An air-to-water heat pump is a highly efficient system that uses heat from the ambient air for hot water production. Its heat energy output is about three to five times as high as the electricity input required to run it.
The Panasonic CO2 heat pump produces domestic hot water at 59 degrees C without requiring an electrical backup, even at an outside temperature of -10 degrees C.
Control your hot water
from anywhere

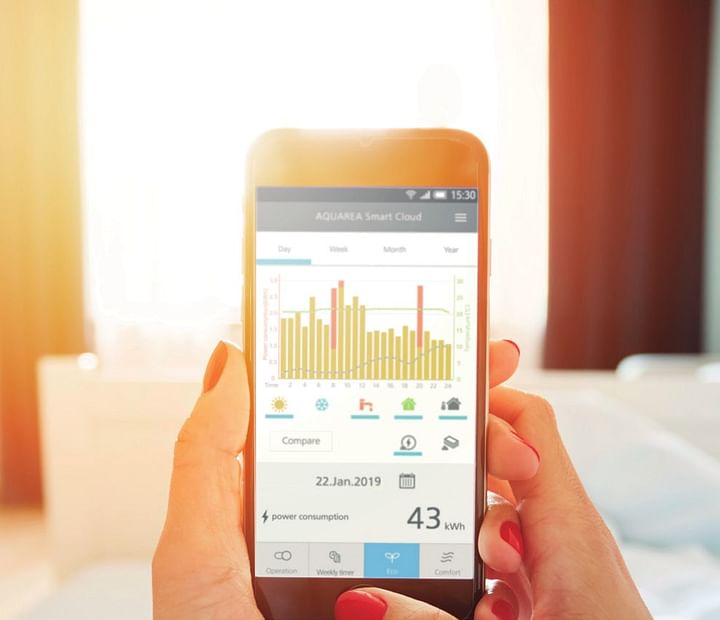

The Panasonic external controller is WiFi-enabled, so you can manage your hot water and air conditioning together, straight from your smart phone.
- 01 View daily, weekly, monthly or annual usage
- 02 Set your desired temperature remotely
- 03 Switch on holiday mode before you return
- 04 Manage hot water and air conditioning in one place
Choose your output
Two heat pump units engineered for the same whisper-quiet 37 dB(A) operation. Pick the capacity that suits your household.
- Energy efficient natural CO2 refrigerant
- Top-down heating, fastest recovery rate
- Split system, flexible installation
- WiFi controller and PV solar integration
- C.O.P. 5.00 - Noise 37 dB(A) - 41 kg
- Everything in the 4.0kW, plus:
- Greater heating capacity at low temperatures
- Faster recovery for high hot-water demand
- Industry-leading C.O.P. of 6.11
- Heat output up to 6.5 kW - 46 kg
Which tank size is right for you?
A range of Australian-made stainless steel and vitreous enamel tanks, all backed by the 10-year warranty.
Heat pump specifications
| Specification | HE-UM40CR (4.0kW) | HE-UM60CR (6.0kW) |
|---|---|---|
| Power Supply | 230-240 V single-phase, 50 Hz | |
| Heat Output (Max) | 5.8 kW | 6.5 kW |
| C.O.P. (AS 5125) | 5.00 | 6.11 |
| Noise Level | 37 dB(A) | 37 dB(A) |
| Heating Temperature | 63 degrees C | |
| Min. Outdoor Temperature | -10 degrees C | |
| Refrigerant | R744 (CO2) - natural | |
| Dimensions | Height - 672mm. Width - 867mm. Depth - 299mm | |
| Weight | 41 kg | 46 kg |
| Ingress Protection | IPX 4 | |
| Warranty | 10 years parts and labour (heat pump, tank and controller) | |
Storage tank specifications
| Stainless Steel | Vitreous Enamel | Vitreous Enamel | ||||||
|---|---|---|---|---|---|---|---|---|
| Dual Handed Connections | Dual Handed Connections | Left side only Connections | ||||||
| Model No | PHE-250ASR | PHE-315ASR | PHE-250AGR | PHE-315AGR | PHE-400AGR | HE-250AHR | HE-315AHR | HE-400AHR |
| Tank Volume (L) | 250 | 315 | 250 | 315 | 400 | 250 | 315 | 400 |
| Height (mm) | 1673 | 2038 | 1444 | 1764 | 1703 | 1712 | 1650 | 1705 |
| Diameter (mm) | 620 | 620 | 623 | 623 | 711 | 570 | 640 | 700 |
| Weight (kg - empty) | 60 | 75 | 71 | 92 | 116 | 90 | 97 | 130 |
| Hot water out, HP Return, PTR (mm) | 1405 | 1768 | 1217 | 1537 | 1452 | 1210 | 1090 | 1140 |
| Cold water in, HP Flow (mm) | 268 | 266 | 201 | 201 | 226 | 256 | 282 | 281t |
| Sensor Port (mm) | 579 | 681 | 452 | 551 | 536 | 541 | 532 | 591 |
| Anode (material, mm diameter) | No | No | Magnesium, 26.7 | Magnesium, 26.7 | ||||
| Pressure and Water Connections | ||||||||
| PTR Valve - kPA | 700 | 700 | 850 | 850 | 850 | 850 | 850 | 850 |
| Mains Water Pressure Max - kPa | 500 | 500 | 500 | 500 | 500 | 500 | 500 | 500 |
| Water Connections - BSP | 3/4" Female | 3/4" Female | 3/4" Female | |||||
| Country of Manufacture | Australia | Australia | PRC | |||||
| Warranty - Parts and Labour | 10 Years (excl. WA) | 10 Years | 10 Years | |||||
